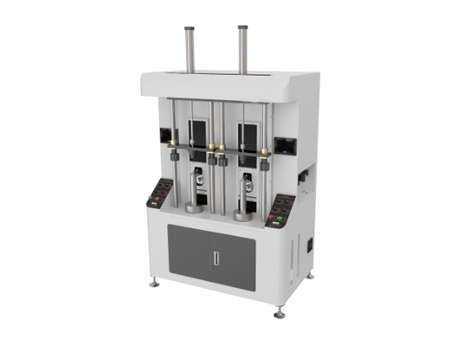

Double Station Servo Beading & Pressing Machine
Item No. - VFL 028
Beading & Pressing Machine, It is an automatic model, mainly used for the crimping process of the mouth and bottom of the cup.
![](gifs/vf28.jpg)

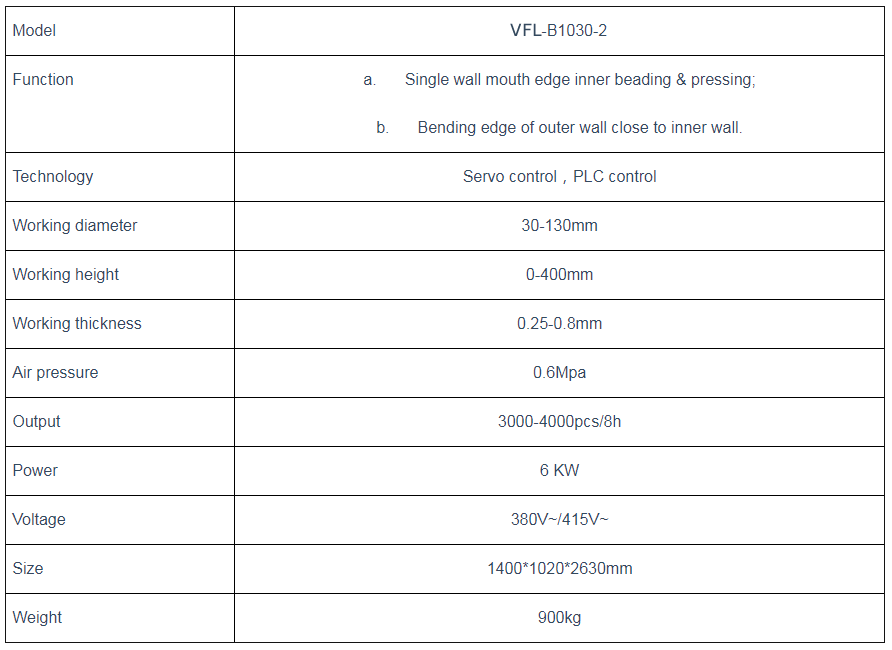

Specifications
Advantage
- To protect user by making the single wall bottle edge round.
- Pre- welding , make outer wall lose inner wall.
- Accuracy: Tolerance ±0.1mm.
- High capacity.
Application
- Beading & Pressing Machine, It is an automatic model, mainly used
for the crimping process of the mouth and bottom of the cup.
- The frame
part is welded with 6# square tube and A3 panel.
- The X Y Z
axis sliding table is made of an integral steel frame structure, which
has good rigidity, good dustproof effect and long service life.
- The
operation is simple and easy to learn, press the start button, the lower
cylinder is tightened, the main shaft rotates, the X-axis cutter wheel
feeds and curls and the cutter is retracted, the top cylinder is pressed
down, and the Y-axis is fed by the wheel to press the edge.
- The quality
of processed products is stable and rapid. It is an ideal equipment for
metal utensil manufacturing and processing enterprises.
