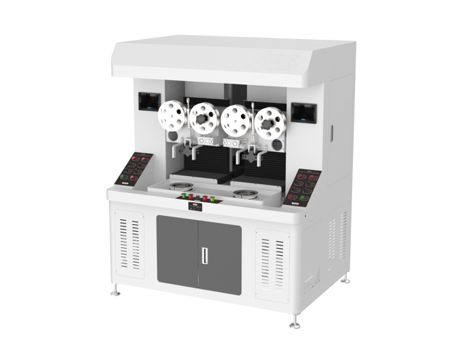

Double Stations CNC Mouth & Bottom Welding Seam Grinding Machine
Item No. - VFL 077
Double Stations CNC Mouth & Bottom Welding Seam Grinding Machine is an automatic model, which is mainly used for the surface edging process of the bottom of the mouth of the cup and pot.

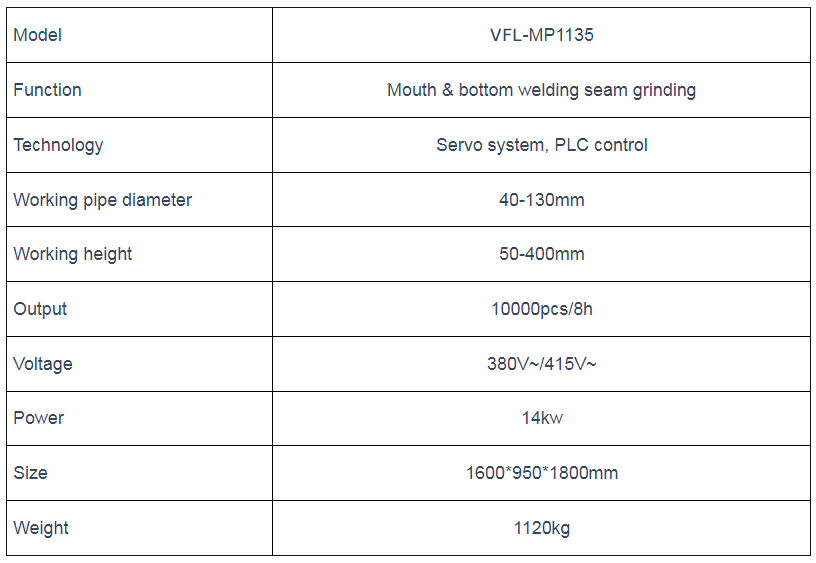

Specifications
Advantage
- Protect end user : deburr & make mouth edge smooth.
- Look beautiful on the welded bottom.
- Stain finish.
- High capacity.
Application
- Double Stations CNC Mouth & Bottom Welding Seam Grinding Machine
is an automatic model, which is mainly used for the surface edging
process of the bottom of the mouth of the cup and pot.
- The overall
steel frame structure of the X Z axis sliding table, and the structure
design of the rotary automatic swing angle grinding head make the
quality and appearance of the processed products more excellent.
- The
high-power dust suction fan can perfectly absorb the grinding dust, and
the product mold adopts the pull-down rotary cylinder tensioning device,
which has the characteristics of good stability, simple and efficient
operation.
- Adopt HGH
high-precision slide rail, good rigidity and long service life.
- The
operation is simple, press the start button, the pull-down cylinder
pulls down the mold and the spindle rotates.
- At the same
time, the XZ axis pushes the operation to process the product mouth, and
after the program ends, it can return to the initial state.
- The quality
of the processed products is stable. The machine has the characteristics
of fast grinding speed and good quality. It is an ideal equipment for
metal utensil manufacturing and processing enterprises.
