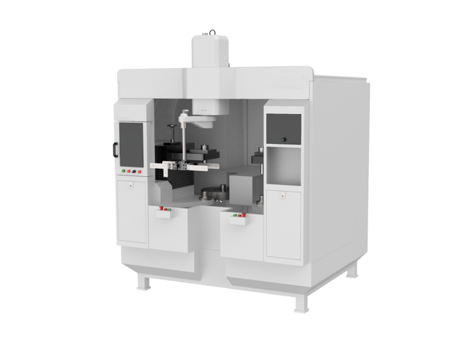

Double Stations CNC Polishing Machine
Item No. - VFL 079
Double Stations CNC Polishing Machine, It is an automatic model, Mainly used for surface polishing process of cup and pot body.

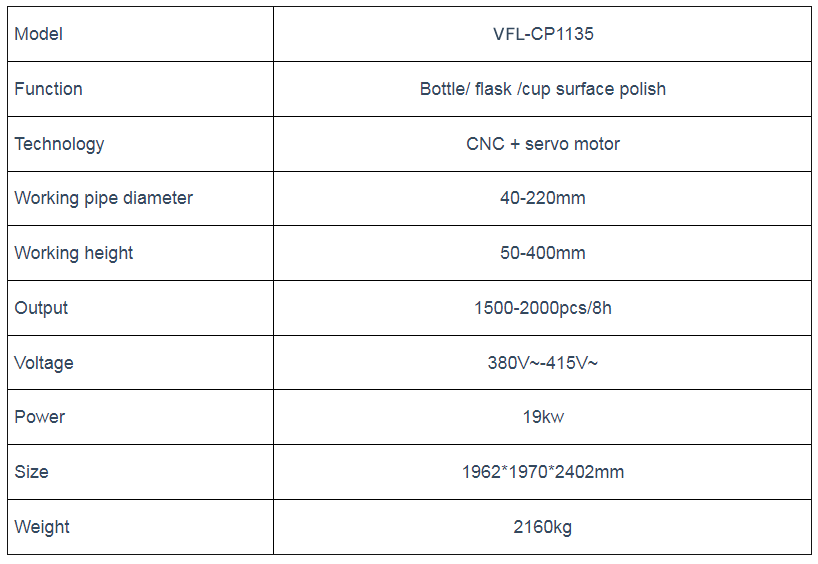

Specifications
Advantage
- To make satin & mirror finish on kettle, flask & bottle
surface.
- Double stations in 1 machine: rough grinding + satin /mirror polishing.
- 2pcs working alternately.
- Accuracy: Tolerance ±0.1mm.
Application
- Double Stations CNC Polishing Machine, It is an automatic model, Mainly
used for surface polishing process of cup and pot body.
- The frame
part is welded with 8# square tube and A3 panel.
- X Y Z B
A-axis sliding table is made of integral cast iron structure, with good
rigidity, good dustproof effect and long service life.
- The
operation is simple and easy to learn, press the start button, the top
cylinder goes down, the A axis is propelled by the wheel, and the B axis
is rotated.
- The X-axis
and Z-axis and Y-axis advance the operation graphic track to process the
product, and the program can be returned to the initial state after the
end of the program.
- The quality of processed
products is stable, and copper and aluminum can also be thrown. It is an
ideal equipment for metal utensil manufacturing and processing
enterprises.
