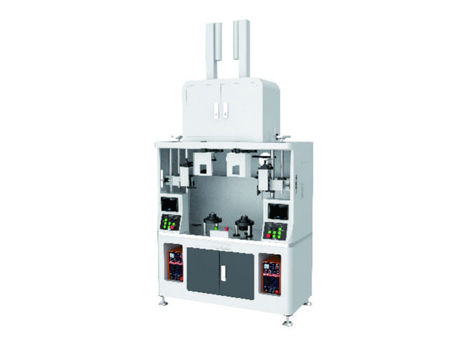

Double Stations Servo Straight Circular Argon Welding Machine
Item No. - VFL 061
Double Stations Straight Circular Argon Welding Machine is mainly used for the welding process of the inner tank and the outer shell of the cup and pot after press-fitting.

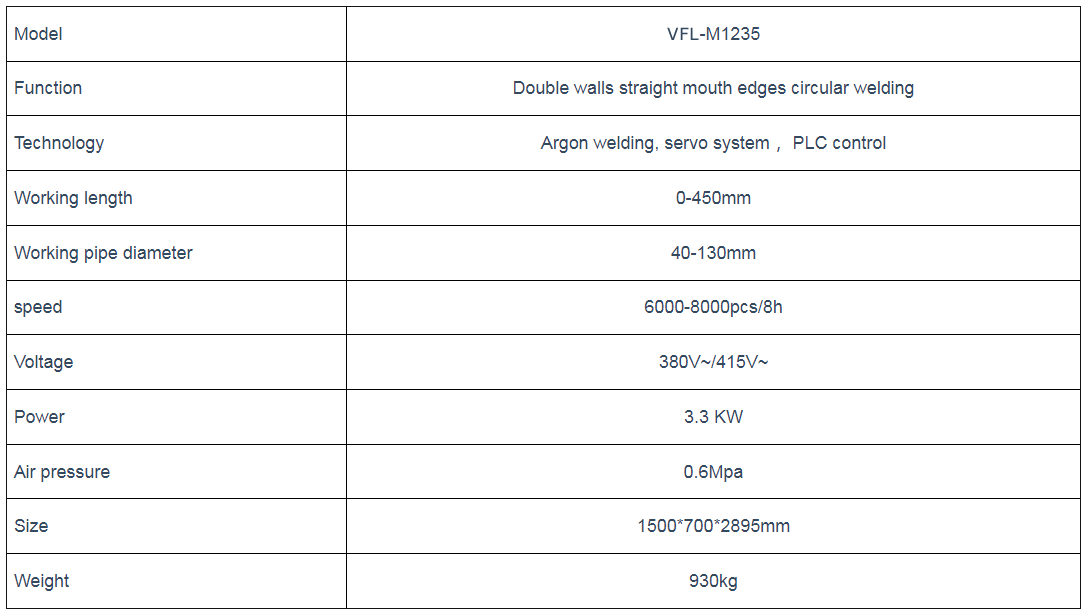

Specifications
Advantage
  • Bottle pressing and welding 2 process fnished in 1machine.
  • High production capacitv:2pcs fnished in 1machine at same time.
  • Easy operation and setting.
  • Less effort and high gain capacity.
  • Manpower saving.
Application
  • The machine is mainly used for the welding process of the inner tank and the outer shell of the cup and pot after press-fitting.
  • The frame part is welded with sheet metal and 5# square tube.
  • The position and angle of the welding gun are easy to adjust. The goggles automatically protect the face.
  • The welding torch structure and cup mouth have good flexibility, easy operation, high efficiency and good stability.
  • Put the product into the equipment mold, press to start, the upper cylinder head mold is matched, the pneumatic chuck clamps the product spindle to rotate, the handwheel fine-tunes the position of the welding torch, and the ignition welding is completed for one week.
  • Processed products are stable. It is an ideal equipment for metal utensil manufacturing and processing enterprises.
