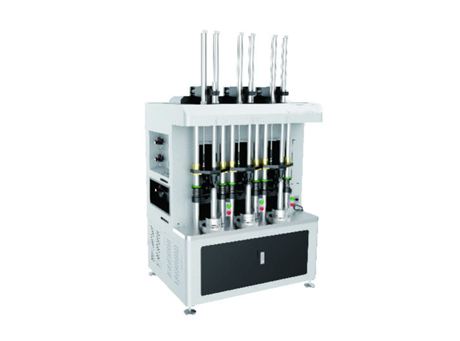

Triple Stations CNC Spinning Neck Machine
Item No. - VFL 015
Triple stations CNC spinning neck machine, Mainly used for the rotary compression port of the cup and pot.

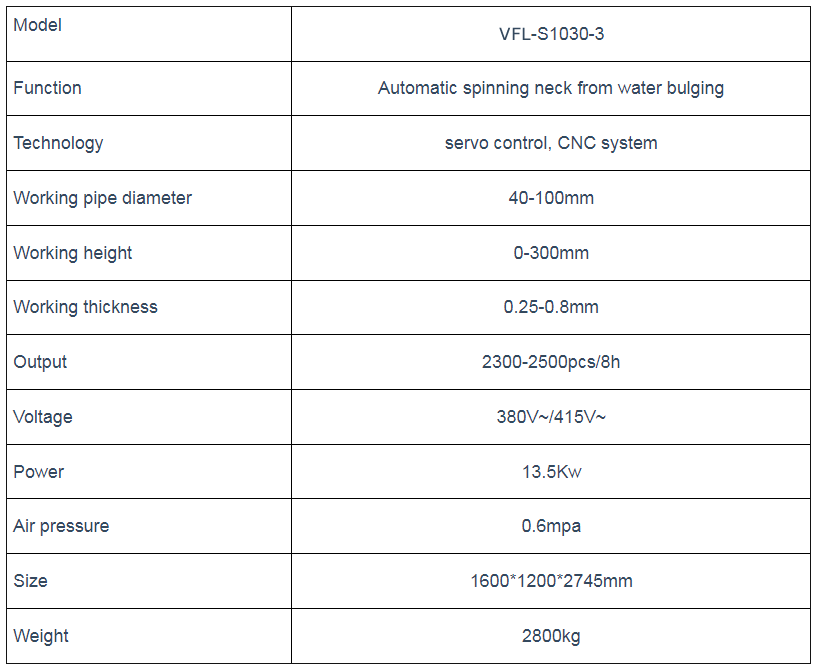

Specifications
Advantage
- Smooth straight pipe or pyramid-like structure both available.
- Vertical spinning, easier loading & unloading.
- High precision and high accuracy machine.
Application
- Triple stations CNC spinning neck machine, Mainly used for the rotary
compression port of the cup and pot.
- The frame part is welded with 10# square tube and A3 panel.
- The X, Z axis sliding table is made of integral cast iron structure,
with good rigidity and long service life.
- The operation is simple, press the start button, the top cylinder
goes down and the main shaft rotates.
- The X-axis and Z-axis are advanced to process the product, and the
program can be returned to the initial state after the end of the
program.
- The quality of processed products is stable, and copper and aluminum
can also be reduced. It is an ideal equipment for metal utensil
manufacturing and processing enterprises.
- The machine contains HMI interface, which can be connected to the
robot hand to realize unmanned production.
